Technical specs and compliance
Everything engineers and labs want up front: wireless stack, environmental limits, safety standard references, and a simple architecture diagram.

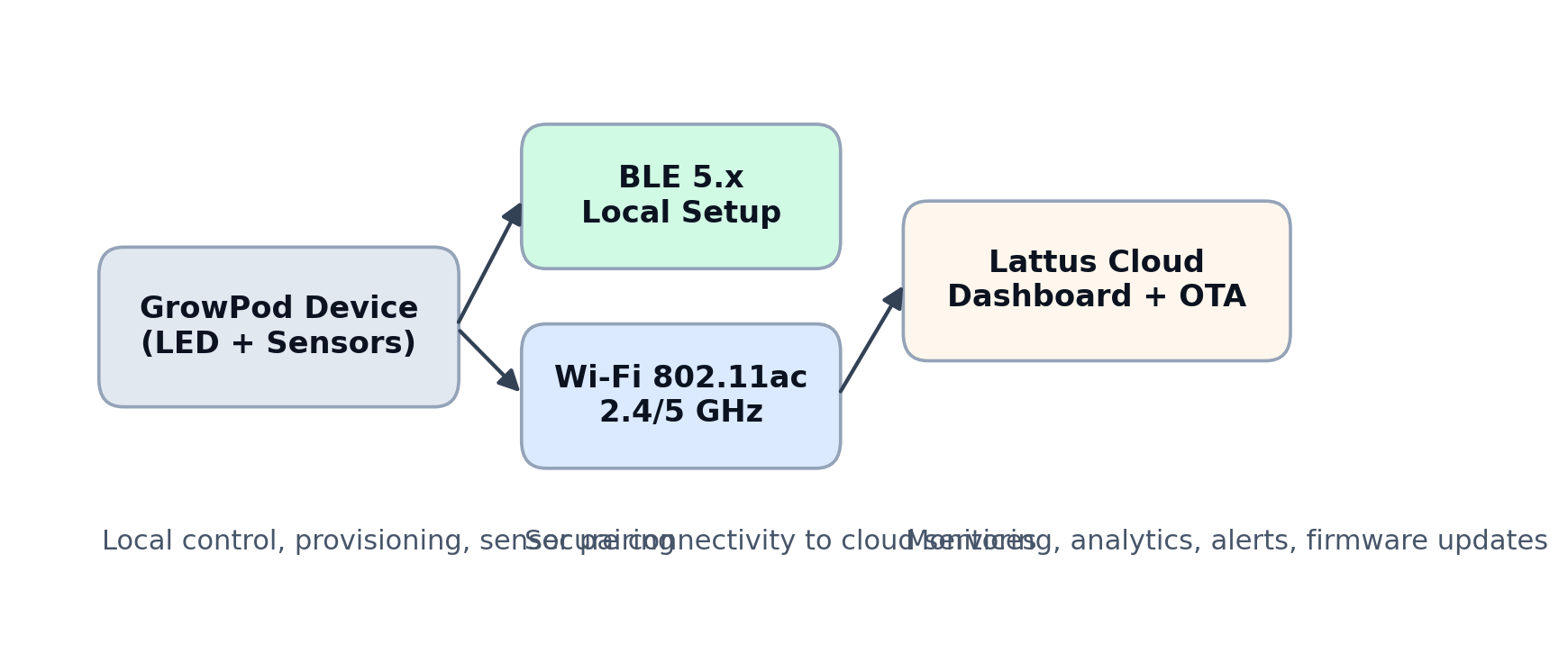

Connectivity architecture
BLE for local provisioning and accessories. Wi-Fi 802.11ac for secure cloud services and OTA updates.
Diagram is illustrative for this fictitious product family.
General technical specifications
Model-family level specifications for GrowPod S, M, and X.
| Category | Specification |
|---|---|
| Wireless | Bluetooth Low Energy (BLE 5.x); IEEE 802.11ac Wi-Fi |
| Frequency bands | 2.4 GHz and 5 GHz |
| Input voltage | 100 to 240 VAC, 50 or 60 Hz |
| Power consumption | Up to 150 W, model dependent |
| Operating temperature | 0 C to +40 C |
| Storage temperature | -20 C to +60 C |
| Relative humidity | 10 to 90 percent, non condensing |
| Lighting | Full spectrum LED; adjustable intensity and photoperiod scheduling |
| Sensors | Integrated temperature and humidity; optional EC, pH and CO2 modules |
| Security | TLS authentication; encrypted OTA updates; secure boot |
| Antenna | Internal PCB antenna; less than or equal to 3 dBi; no user accessible RF connectors |
| Installation | Indoor use only |
Safety and product standards
Planned / region dependent.
IEC 62368-1 and EN 62368-1 (Audio/video, information and communication technology equipment - Safety requirements). Additional regional standards may apply based on final configuration and target market.
Regulatory pathways
Planned / region dependent.
FCC Part 15 (United States), ISED RSS-247 (Canada), CE (EU Radio Equipment Directive), UKCA (United Kingdom), and RCM (Australia / New Zealand).
Downloads
Share these with engineering, labs, or procurement.
